Aluminium

Drill bits for tapping tubes - with Factory Replaceable Tungsten Carbide inserts & sliders

A series of high quality drill heads with 3 side-gliders in cemented carbide. Designed for Aluminium, and heavy interrupted cuts.
When the Carbide egde is worn down, customers can send the body back to SAPEG for refurbishing, where it gets a new edge and new side gliders. This gives our customers a 50% saving.
Sizes:  55mm, 74mm, 90mm (other sizes on request)
Blasting: Forward
Different adapters for fitting are available on request.


Drill bits for tapping tubes - with customer Replaceable Tungsten Carbide inserts

A series of high quality drill heads for drilling & cleaning of various types of tubes and pipes. Designed for Aluminium, and heavy interrupted cuts.
Sizes:  74mm & 90mm  (special sizes on request)
Blasting: Backwards
Different adapters for fitting are available on request.


Milling Tools for Crucibles

Designed for Aluminium, and heavy interrupted cuts. Rough inserts (ø40mm) and robust steel holders for Heavy duty milling and cleaning of Crucibles.


Big Carbide milling inserts for cleaning of Crucibles

Sizes:
The A-Plate (Left): 170 x 50 x 20 mm
The B-plate (Right): 90 x 50 x 20 mm


The Carbide Rat

Designed for Aluminium, and heavy interrupted cuts.
Inserts:  5 Tungsten Carbide inserts
Size:  D: 67 mm, H: 95 mm


Cemented Carbide tool Inserts

Designed for Aluminium, and heavy interrupted cuts. Extremely long-lasting.
Sizes: Ø30 mm positive, Ø32 mm positive, Ø40 mm negative

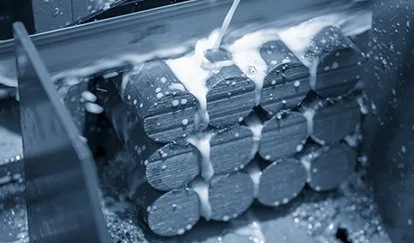

Saw Blades for Aluminium

Fizeta is used by most of the big Aluminium Plants world wide. Fizeta's anti-noice blades gives better performance because of less vibration during the cutting process. The special quality of the carbide tips and the geometry, the saw blades are able to reach an extremely high number of cuts, maintaining an optimal surface finish of the cut material. See below for more information on the two series of blades for Aluminium.
Mandatory lubricant: Fatty alcohol based & hydrocarbon free, like the OPORTET HR18.

Aluminium Catalogue                            Sandwich Panel Catalogue


Lubricant for sawing Aluminium

OPORTET from Kompressol-Oel Verkaufs GmbH is one of the top brands for cooling of the sawing process. The OPORTET HR18 is designed for non-ferrous metal and alloys and is used by several of the Aluminium-plants in Norway.  The HR18 is fatty vegetable alcohol environmentally-friendly, hydrocarbon free, that gives the blade a long life. This lubricant evaporates completely, leaving no spot on the cut piece.
Biologically easily degradable, minimum quantity lubricant on a fatty alcohol base. OPORTET® - HR18 is suitable for all lighter forms of material removing and forming processes. Read more  The EC-Safety Data Sheet can be downloaded here.
